Grab Wire Safety Rope Switches
Designed to be mounted on machines and sections of conveyors which cannot be protected by guards.In contrast to traditional mushroom head type emergency stop buttons, Grab Wire Safety Rope Switches can initiate the emergency command from any point along the installed rope length and provide robust Emergency Stop Rope Pull protection for exposed conveyors or machines. In combination with a dual channel safety monitoring relay IDEM's Guardian Line Series Grab Wire Safety Rope Switch System can be used as emergency stop devices monitored for up to Category 4 to EN 954-1 or PLe ISO 13849-1.All conform to ISO 13850 and IEC 60947-5-5 and they have a positive mechanical linkage between the switch contacts and the wire rope. The switches have wire breakage monitoring.On pulling the rope, anywhere along the length, the safety contacts are positively opened and the auxiliary contacts are closed. The swtiches are mechanically latched and can then only be returned to the operational condition by pressing the blue reset button as required by ISO 13950.An optional 2 colour LED indicator is available to enable switch status to be viewed from a distance.
Ashdale are proud to represent IDEM in Northern Ireland.
Our technical team are OEM trained and certified so you can trust us to provide the very best support for sales & service.
If you have an application, please get touch we love solving problems !
IdeSafe Bus System: 2 Wire Safety Communications
IDESAFE BUS SYSTEM: 2 WIRE SAFETY COMMUNICATIONS FOR USE WITH ROPE SWITCHES COVERING LONG LENGTHS (UP TO 5KM).
The IdeSafe Bus System allows the IDEM GLH Safety Rope Switches to be connected in series to protect long conveyor lengths up to 5Km whilst maintaining diagnostics and safety integrity.
Each switch contains an address programmable module to give individual diagnostics of the switch status and is readable at the control cabinet.
Open circuits are detected.
The whole system is connected in series by a simple 2 wire connection system from switch to switch making wiring easy and simple to install.
Safety integrity is maintained throughout via positively opened switch contacts connecting to the transmission bus to maintain PLe to ISO13849-1, SIL3 to EN62061 and Category 4 to EN954-1.
Communications capabilities - the system can be interfaced to most Text Displays, Touchscreens, PLCs and PCs via the gateways for Modbus and Profibus.
Up to 63 switches will connect to one IdeSafe Bus.
High flexibility allows the easy expansion of the system step-by-step by the installation of additional safety input modules.
Basic elements required are Master Module, Safety Receiver and Rope Switches with Input Modules.
GLS-SS: Guardian Line Standard Duty
PROTECTION UP TO 100 METRES.
The GLS-SS is a General Duty Safety Rope Pull Switch designed to protect long conveyor lengths up to 100m. The Stainless Steel 316 housings are designed specifically to withstand the tough environments found in the Food and Pharmaceutical industries.
The fixing holes are under the cover to the switch to prevent food trap areas. They are all purpose switches and will survive chemical and detergent washdown by providing all stainless steel parts and robust IP67 and IP69K sealing by using integral bellows and gaskets.
An easily visible bi-colour LED is available to show switch status from a distance and they have a choice of 3 pole, 4 pole or Explosion Proof contact blocks to ensure flexibility with all modern control applications.
Shorter rope spans up to 80m can be achieved by using just one switch therefore making a cost effective solution and also reducing electrical wiring runs.
A Low Temperature -40C version (GLS-SS-FZ) is also available.

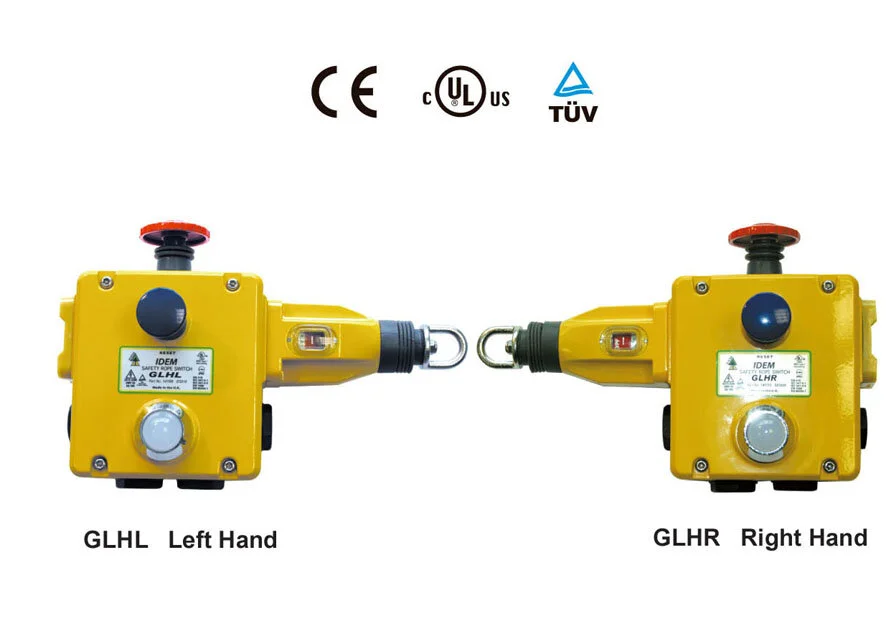

GLHL/GLHR: Guardian Line Heavy Duty
PROTECTION UP TO 125 METRES.
IDEM's GLHL/GLHR is a robust die-cast Heavy Duty Safety Rope Pull Switch which is designed to protect long conveyor lengths where protection is required up to 125m (using 2 switches) or up to 100m where just one switch is required.
The die-cast housings have been manufactured to provide a robustness that can survive indoor and outdoor use.
A high visibility bi-colour LED ensures that switch status can be easily viewed from a distance. They have 4NC 2NO contacts that ensure flexibility with all modern control applications and are available with optional Explosion Proof contact blocks.
A Low Temperature -40C version (GLHL-FZ and GLHR-FZ) is also available.
GLHL-SS/GLHR-SS: Guardian Line Heavy Duty S/Steel
PROTECTION UP TO 125 METRES.
IDEM's GLHL-SS/GLHR-SS robust Heavy Duty Safety Rope Pull Switch is designed to protect long conveyor lengths where protection is required up to 125m (using 2 switches) or up to 100m utilising just a single switch.
Manufactured with a Stainless Steel 316 housing the GLHL-SS/GLHR-SS is designed specifically to withstand the tough production environments found in the Food and Pharmaceutical industries. They will survive chemical and detergent washdown by providing all stainless steel parts and robust IP67 and IP69K sealing by the use of integral bellows and gaskets.
They can be used to complement the GLHD-SS versions at each end of the rope span.
Low Temperature -40C versions (GLHL-SS-FZ and GLHR-SS-FZ) are also available.
GLHD: Guardian Line Heavy Duty
PROTECTION UP TO 250 METRES.
IDEM's GLHD Heavy Duty Safety Rope Pull Switch is designed to protect long conveyor lengths. The die-cast housings are extremely robust and survive indoor or outdoor use including washdown (IP67 rating).
Lengths over 2Km can be achieved with less than 20 switches.
A bi-colour LED ensures switch status can be seen easily from a distance. They have 4NC 2NO contacts to ensure flexibility with all modern control applications and optional Explosion Proof contact blocks are available.
Shorter rope spans up to 200m can be achieved by using just one switch therefore making a cost effective solution and also reducing electrical wiring runs.
A Low Temperature -40C version (GLHD-FZ) is also available.
GLHD-SS: Guardian Line Heavy Duty S/Steel
PROTECTION UP TO 250 METRES.
IDEM's GLHD-SS offering is a Heavy Duty Safety Rope Pull Switch which has been designed to protect long conveyor lengths up to 250m.
The Stainless Steel 316 housings have been designed and manufactured specifically to withstand the harsh environments that are found in the Food and Pharmaceutical industries. They will survive chemical and detergent washdown by providing all stainless steel parts and robust IP67 and IP69K sealing by the use of integral bellows and gaskets.
Fitted with a bi-colour LED which ensures that the switch status is easily visible and can be seen from a distance. They have 4NC 2NO contacts that ensures flexibility with all modern control applications and they are also available with optional Explosion Proof contact blocks.
Shorter rope spans up to 200m are achievable with the use of just one switch therefore providing an extremely cost effective solution and in addition reducing electrical wiring runs.
A Low Temperature -40C version (GLHD-SS-FZ) is also available.
GLM: Guardian Line Mini Duty Rope Switch
PROTECTION UP TO 50 METRES
The GLM is a compact yet very robust die-cast Mini Duty Safety Rope Pull Switch designed to protect short conveyor lengths where protection is required up to 50m using two switches or up to 30m using a single switch.
They provide reliable, extremely cost-effective safety solutions for conveyor systems and can be enhanced by adding external mushroom type E Stop at the switch or bi-colour LED to show switch status from a distance.
They have a choice of 3 or 4 pole contacts to ensure flexibility with all modern control applications.
Rugged internal sealing bellows means they can be high pressure hosed.
GLM-SS Mini Duty Stainless Steel
PROTECTION UP TO 50M (164ft)
The GLM-SS is a Stainless Steel extremely robust Mini Duty Safety Rope Pull Switch.
It has been designed to provide protection on short conveyor lengths for spans of up to 50m using two switches or up to 30m using just one GLM-SS.
The GLM-SS provides a reliable, extremely cost-effective safety solution for conveyor systems and can be enhanced by adding external mushroom type E Stop at the switch or bi-colour LED to show switch status from a distance.
Offering a the option of 3 or 4 pole contacts to ensure flexibility with all modern control applications.
Rugged internal sealing bellows means they can be high pressure hosed.
GLS: Guardian Line Standard Duty Rope Switch
PROTECTION UP TO 80 METRES.
The GLS is a general duty robust die-cast Safety Rope Pull Switch designed to protect conveyor lengths where protection is required up to 80 metres using two switches or up to 60 metres using a single switch.
They provide a reliable general purpose safety solution for conveyors and offer a choice of fittings depending upon the application.
They can be supplied with a mushroom type Emergency Stop Button which can be fitted to the side of the switch, to offer an extra traditional Emergency Stop function close to the switch, or can be fitted later after installation without any extra wiring.
A bi-colour LED is available to show switch status from a distance and they offer a choice of 3 pole, 4 pole or Explosion Proof contact blocks to ensure flexibility with all modern control applications.
Rugged integral sealing bellows means they can be high pressure hosed and the choice of materials makes them suitable for internal or external use.
A Low Temperature -40C version (GLS-FZ) is also available.
GLS-AR: Grab Wire Auto Reset Trip Switch
ROPE PULL OPERATED. AUTO-RESET STOP SWITCH.
Grab Wire Auto-Reset Stop Rope Switches are mounted on machines and sections of plant conveyors to initiate a momentary control signal command from any point along the installed rope length.
Pulling the rope causes instant tripping of the control circuit contacts.
Ideal for normal stop circuits where manual resetting of the switch is not required. The switch cannot be used in safety applications, it is only to be used for indication.
The switches have a positive mechanical linkage between the switch contacts and wire rope as per IEC60947-5-1. The switches are brought into the operational condition by pre-tensioning the rope by use of a tensioner device which clamps the rope and then hooks to the switch eyebolts. Correct tension can be observed by viewing the tension indicator on the switch housing. Once tensioned the switch contact blocks are set to the operational condition, i.e. Signal contacts Closed - Auxiliary contacts Open.
All of the switches have wire breakage monitoring. On pulling or breakage (tension loss) of the rope, the normally closed Signal contacts are Opened and the Auxiliary contacts are Closed. The switches will be returned to the operational condition as soon as the rope returns to the set position.
Accessories: Guardian Line Rope Switches
There is a range of accessories available from IDEM that assist with the installation of the full range of Guardian Line Safety Rope Switches.
ROPE KITS: Rope Kits come complete with Rope (choice of 5m to 126m), Eyebolts (amount dependent upon length of rope chosen), IDEM's patented Tensioner/Gripper and a 4mm Allen Key.
ROPE TENSIONER/GRIPPER: IDEM's patented Tensioner/Gripper significantly reduces installation time by offering an eyhook and tensioner thimble and high strength gripper in one assembly that enables rapid connection to the Rope Switch eyebolts.
ROPE PULLEYS: Available in Stainless Steel or Galvanised. 77mm long, 40mm high with 20mm Fixing Hole centres.
EYEBOLTS: Available in packs of 8 eyebolts in Stainless Steel or Galvanised. Each eyebolt is 84mm long (thread length: 51mm).
LEDs: Visible from long distances and available as Green/Flashing Red in either 24Vdc, 110Vac or 230Vac.
SAFETY SPRING: 220mm long the Safety Spring provides a means of connection to enable using just one Rope Switch.
ANTI-TAMPER SCREWDRIVER:
IDEM Rope Switches are anti-tamper, the T20 allows engineers access to the Rope Switches.
Full Installation Instructions for Rope Pull Kits
Complete instructions for the installation of IDEM's Rope Pull Kits are available by clicking on the Download Data Sheet button on the right.
The installation instructions provide you with a complete step-by-step guide to ensure quick and safe installation.
Guardian Line Quick Connect Versions
Quick connect details for switches without LED indication.
