RFID Coded Non Contact Safety Switches
RFID Coded Non Contact Safety Switches
IDEM's extensive range of RFID Coded Non Contact Switches have been developed to provide and maintain a high level of functional safety whilst providing a very high anti-tamper coded activation.Coding is achieved by using magnetic and radio frequency techniques, both principles need to be satisfied for the switch to operate safely.They will connect to most popular standard Safety Relays to achieve up to PLe/Category 4 to ISO 13849-1.They are offered in mirror polished Stainless Steel 316 or high specification polyester housings and can be used in almost any environments including high pressure cleaning following contamination from foreign particles.All the range has IP69K ingress protection and are suitable for CIP and SIP cleaning processes.The typical sensing distance "on" is 14mm with wide tolerance to guard misalignment after setting.The RFID sensing provides a tamper resistant operation when the actuator is in the sensing range of the switch.IDEM's RFID Coded Non Contact Switches are available in two types either Master Coded or Unique Coded.
Ashdale are proud to represent IDEM in Northern Ireland.
Our technical team are OEM trained and certified so you can trust us to provide the very best support for sales & service.
If you have an application, please get touch we love solving problems !
KPF RFID Coded Non Contact Safety Interlock Switch
The KPF has RFID CODED Actuation with a wide SWITCHING TOLERANCE of up to 14mm.
The durable polyester housing offers Front and End Actuation.
THE KPF will operate with most Safety Relays and can therefore achieve up to PLe/Cat4 ISO13849-1.
KPF RFID Coded Non Contact Safety Switches are designed to fit to hinged, sliding or removable guard doors.
Designed with an industry standard fixing they are especially advantageous when:
(a) Severe guard alignment exists using traditional tongue type versions.
(b) Long mechanical life is required (no moving or touching parts).
When used in combination with dual channel safety relays they can be used to provide up to PLe/Cat4 ISO13849-1.
Industry housing shape: 52mm wide, 98mm long and 40mm fixing. Fully encapsulated sealing and pre-wired 5m or 10m cable.
2NC 1NO semi-conductor outputs for connection to safety relay.
Visual LED indication of switch status.
M12 8 way Quick Connect version - flying lead 150mm.
LMF RFID Coded Non Contact Stainless Steel 316 Switch
The Stainless Steel 316 Mirror Polished finish LMF RFID safety switch has been developed to maintain a high level of functional safety whilst providing a very high anti-tamper coded activation for non-contact guard door interlocking applications in the Food Processing, Pharmaceutical, Packaging, Beverage and Petro-Chemical Industries.
Coding is achieved by using magnetic and radio frequency techniques, both principles need to be satisfied for the switch to operate safely. They will connect to most popular standard Safety Relays to achieve up to PLe/Category 4 to ISO 13849-1.
Manufactured from Stainless Steel 316 they are suitable for CIP and SIP cleaning and can be high pressure hosed at high temperature (rated IP69K), they have a wide 12mm sensing with high tolerance to misalignment and have been designed in accordance with EHEDG guidelines for hygienic design.
The housing design, surface finish and styling means they can be used in almost any environment subject to high levels of cleaning following contamination from foreign particles.
Direct Contact Zone - The switch mounting is designed to EHEDG hygienic guidelines and also fulfils the requirements of the splash zone.
Splash Zone - The switch must be easy to clean and withstand CIP and SIP cleaning processes found in the food industry (tested IP69K).
WPF RFID Coded Non Contact Safety Interlock Switch
The WPF has RFID CODED Actuation.
Designed with a wide SWITCHING TOLERANCE of up to 14mm.
The WPF is specified to 80C.
Operating with most Safety Relays the WPF can achieve PLe/Cat4 ISO13849-1.
The slim fitting of the WPF makes it a suitable safety switch for all industry applications.
Manufactured with a durable polyester housing.
The wide 14mm sensing offers a high tolerance to misalignment.
Quick connect versions available.
No moving parts - survives shock and vibration.
LED indication.
BMF RFID Coded Non Contact Safety Switch M18
With RFID CODED actuation and a Stainless Steel 316 M18 barrel housing the BMF has been designed with a popular European fitting making it suitable for all industry applications.
Designed with a wide switching tolerance of up to 8mm.
Designed with hygienic applications in mind the BMF is specified to 80C and can be high pressure hosed with detergent at high temperature in wash down situations due to the IP69K ingress protection rating.
With the ability to operate with most Safety Relays the BPF can achieve PLe/Cat4 ISO13849-1.
The wide 8mm sensing provides high tolerance to misalignment.
LED indication.
Quick connect versions available.
BPF RFID Coded Non Contact Safety Switch M18
With RFID CODED Actuation the BPF with an M18 barrel cylindrical housing has been designed with a popular European fitting making it suitable for all industry applications.
Designed with a wide switching tolerance of up to 8mm.
The BPF is specified to 80C and can be high pressure hosed with detergent at high temperature in wash down situations due to the IP69K ingress protection rating.
With the ability to operate with most Safety Relays the BPF can achieve PLe/Cat4 ISO13849-1.
The wide 8mm sensing provides high tolerance to misalignment.
LED indication.
Quick connect versions available.
LPF RFID Coded Non Contact Safety Interlock Switch
With RFID CODED Actuation the LPF has been designed with a popular European fitting making it suitable for all industry applications.
Designed with a wide SWITCHING TOLERANCE of up to 14mm.
The LPF is specified to 80C.
Operating with most Safety Relays the LPF can achieve PLe/Cat4 ISO13849-1.
The LPF can be high pressure hosed at high temperature due to the IP69K ingress protection rating.
The wide 14mm sensing provides high tolerance to misalignment.
LED indication.
Quick connect versions available.

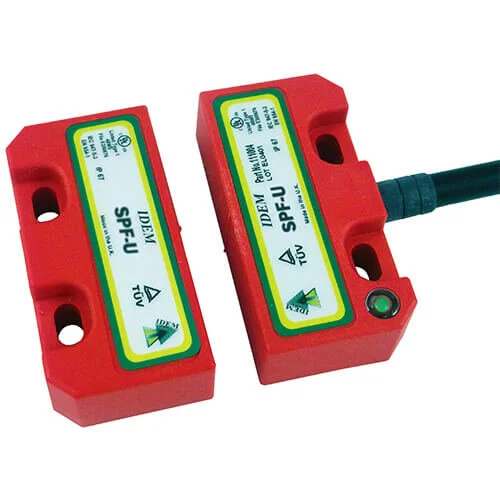

SPF RFID Coded Non Contact Safety Interlock Switch
With RFID CODED Actuation the SPF has been designed with a SWITCHING TOLERANCE of up to 14mm.
The SPF is specified to 80C.
PLe/Cat4 ISO13849-1 is achievable as the SPF will operate with most Safety Relays.
The universal fitting having an established 22mm fixing footprint makes the SPF suitable for most general applications.
Withstands environments where high humidity or hose down is required such as Food Processing applications.
Durable polyester housing.
Wide 14mm sensing and high tolerance to misalignment.
Quick connect versions available.
LED indication.
