Safety Light Curtains
Safety Light Curtains and Relays
Idem’s NEW range of Safety Light Curtains for finger and hand protection offer the user maximum accessibility to a machine or production line by removing or complementing the requirement for mechanical guarding.Manufacturing processes that require operator access to the dangerous area can be performed quickly and with the minimum of interruption to production flow. Machines of all sizes are well suited to guarding by light curtains since the high level of throughput requires the minimum of interruption when inserting and removing product.Fork lift truck access to conveyor lines is also an ideal application allowing fast and efficient access whilst maintaining a high level of safety integrity.Idem’s SLC-F, SLC-H Safety Light Curtains have been designed to ensure protection of operators working in hazardous areas.
SLC-F, SLC-H Safety Light Curtains
IDem’s SLC-F, SLC-H Safety Light Curtains have been designed to ensure protection of operators working in hazardous areas.They operate with infrared beams that are evenly spaced at specific intervals.SLC-F (finger protection) beams spaced 14mm min. sensing.SLC-H (hand protection) beams spaced 30mm min. sensing.When the beam detects a finger or hand entering the defined hazardous area, the protective equipment immediately stops the machine with a 14ms response, or renders it harmless.A high reliability is achieved by implementing a fail-safe system: The devices are Type 4 and PLe/Cat4 to ISO13849-1.Internal failure immediately deactivates the output signals as does any intrusion into the protective field.Non muting function to increase productivity and safety.PNP or NPN selection by DIP switch.
SLC-F Safety Light Curtains
Manufactured in an extremely robust housing the SLC Series offers machine designers a proven solution.
The extruded aluminium housing when coupled with the sturdy mounting brackets give a strong mounting arrangement suitable for areas where occasional vibration or knocks may occur.
Cascadable.
Quick and easy configuration using DIP switches.
Type 4: - a single failure will not lead to a loss of safety.
SLC-F: Finger Protection (14mm resolution)
SLC-H: Hand Protection (30mm resolution)

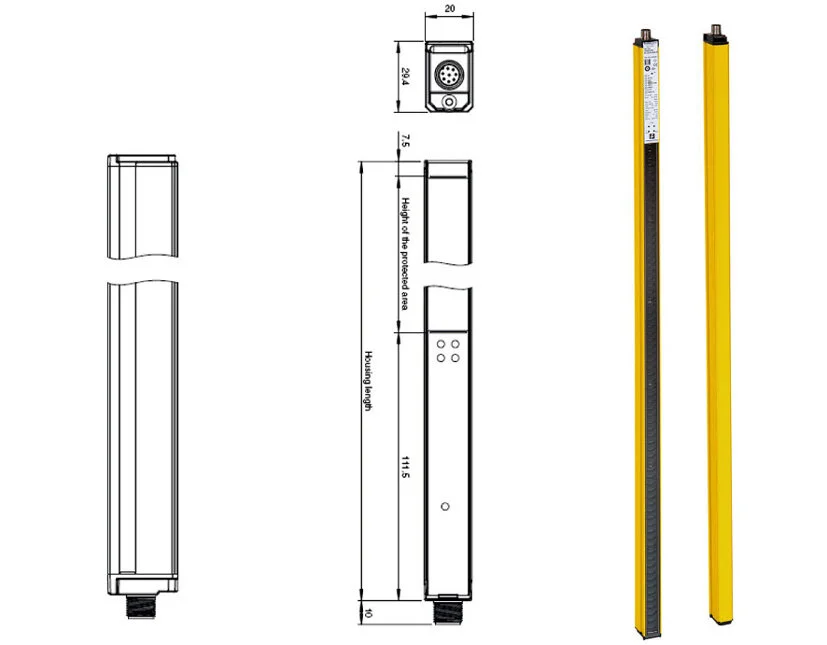

SLCS-F/H/B: Slimline Safety Light Curtains
Manufactured in an extremely robust housing the SLC Series offers machine designers a proven solution.
The extruded aluminium housing when coupled with the sturdy mounting brackets give a strong mounting arrangement suitable for areas where occasional vibration or knocks may occur.
Cascadable.
Quick and easy configuration using DIP switches.
Type 4: - a single failure will not lead to a loss of safety.
SLC-F: Finger Protection (14mm resolution)
SLC-H: Hand Protection (30mm resolution)
.

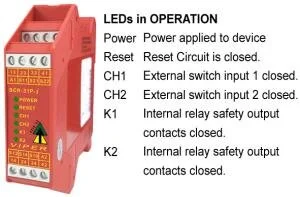

VIPER SCR-31P
The VIPER SCR-31P-i Safety Relay has been designed to meet the latest safety standards and offer enhanced LED diagnostics and simplified wiring.
Applications include the monitoring of safety interlock switches (guard door monitoring),
emergency stop devices and sensors.
The SCR-31P-i is designed to be compatible with devices offering OSSD outputs
(e.g. IDEM's SLC Series Safety Light Curtains).
FEATURES:
* Outputs 3NC contacts and 1NO contact.
* Feedback circuit to monitor external contacts.
* Easy diagnosis of status via visual indication of LEDs.
* Up to PLe, SILCL 3, Category 4.
* Monitored manual or automatic start.
* Single and dual channel operation.
* Output expansion units available to increase number of outputs.
