Emergency Stop (E Stop) Safety Switches
Emergency Stop (E Stop) Safety Switches
Emergency Stop (E Stop) switches are used by operators to shutdown a machine, system, or process.Emergency Stop Switches are mounted on machines and sections of plant conveyors that cannot be protected by guards.In combination with any dual channel safety monitoring controllers these switches can be used as emergency stop devices and monitored for up to Category 4/PLe to ISO13849-1.All IDEM's Emergency Stop Switches conform to European Standard EN ISO13850 (formerly EN418) and IEC60947-5-5. They have a positive mechanical linkage between the switch contacts and the E Stop Button. The switches are mechanically latched and can then only be returned to the operational condition by pressing the reset button as required by EN ISO13850.IDEM's range of Explosion Proof E stop switches can withstand sparking and flames and are IECEx and ATEX certified.
Ashdale are proud to represent IDEM in Northern Ireland.
Our technical team are OEM trained and certified so you can trust us to provide the very best support for sales & service.
If you have an application, please get touch we love solving problems !
GLES: Heavy Duty Emergency Stop Switch
IDEM's range of Heavy Duty Emergency Stop Switches have been manufactured and designed to provide robust Emergency Stop protection for exposed conveyors or machines.
Visual indication from distance is provided by powerful LEDs that give an indication of system and switch status, therefore enabling rapid resetting of the system.
Steady Green: Machine Running
Flashing Red: Machine Stopped
Contact blocks provide up to 4 positively operated switch contacts. An optional Explosion Proof (ATEX Certified) contact block is available for areas where potential explosive situations exist.
FEATURING:
Heavy Duty rugged die-cast metal body painted yellow.
Stainless Steel 316 versions available which are Food Industry compatible.
LED visual indication of switch status.
All internal and external screws and fittings manufactured in Stainless Steel.
Enclosure is protected to IP67 making it washdown suitable.
Conforms to ISO13850, IEC60947-5-1 and IEC60947-5-5.
Switches are easy to wire and offered with up to 4 conduit entry points.
ES-P & ES-SS (3 pole): Standard Duty E Stop
IDEM's Standard Duty Emergency Stop Switches are designed to provide robust Emergency Stop protection for exposed conveyors or machines.
3 pole contact blocks provide positively operated switch contacts.
FEATURING:
Plastic bodies (IP67) or Stainless Steel 316 (IP69K).
Conformance to ISO13850, IEC60947-5-1 and IEC60947-5-5.
Designed with a special lid safety trip mechanism means that the safety contacts will open if the lid is removed from the Emergency Stop Switch adding an extra level of protection.
Button protection shroud version available with padlock holes for "Lock Off" in maintenance situations.

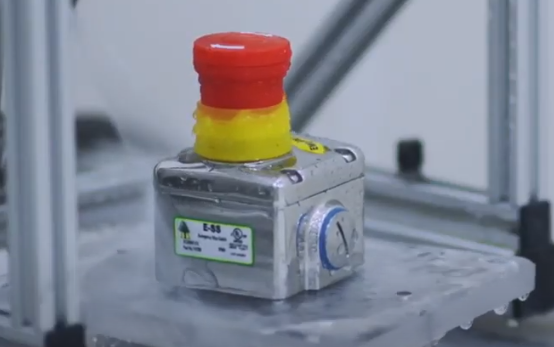

ESL-SS (4 pole & ATEX): Standard Duty E Stop
IDEM's Standard Duty Emergency Stop Switches have been manufactured and designed to provide robust Emergency Stop protection for exposed conveyors or machines.
Stainless Steel 316 housings (IP69K rated), allowing high pressure hosing with detergent at 80C and 100psi.
Conformance to ISO13850, IEC60947-5-1 and IEC60947-5-5.
An added design feature is the special lid safety trip mechanism that makes the safety contacts open if the lid is removed.
A button protection shroud version fitted with Padlock Holes for "Lock Off" during maintenance is also available for extra safety protection.
Available with optional 2 colour LED indication.
