Configurable compact controllers PNOZ multi Mini !

As simple as a safety relay, as flexible as a controller

Do you need to monitor more than three safety functions? As conveniently as possible with minimal clicking in a software tool? Then the configurable safety relays PNOZmulti Mini are the right solution for you!

Play it safe with PNOZmulti Mini – the worldwide safety standard for all machine types. Irrespective of the standard controller, with us you have a one-stop safety solution. PNOZmulti Mini can easily be adapted to growing requirements. You’re bound to like the compact design and the plain text display! Connect the configurable compact controller PNOZmulti Mini to all common communication systems. So the configurable safety relays can be used with various operational controllers.

The configurable compact controller PNOZmulti Mini – a worldwide safety standard for all machine types!

Already familiar with the 2nd generation of small controllers PNOZmulti? The success story continues!

Safety relays - Pilz GB (2).png

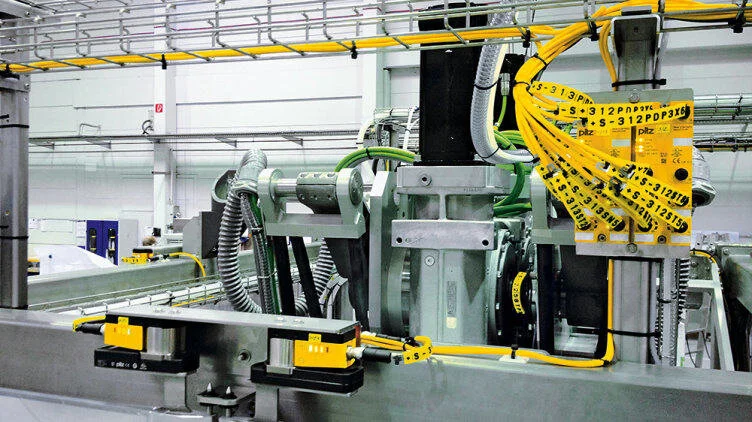

fittosize__752_0_f06726a01692792d6f7c2bbef1e1dd92_f_a_safety_gate_systems_pdp_psenslock_oystar_3c_2016_06_1000x562-desktop-1606125921.jpg

Ashdale are proud to represent PILZ in Northern Ireland.

Our technical team are OEM trained and certified so you can trust us to provide the very best support for sales & service.

If you have an application, please get touch we love solving problems !



fittosize__188_188_b32b5bad96e656c7e11a11e9d445e51c_f_pnoz_mm0p_772000_f1_3c_2016_06_218x218-desktop-1583828277.jpg

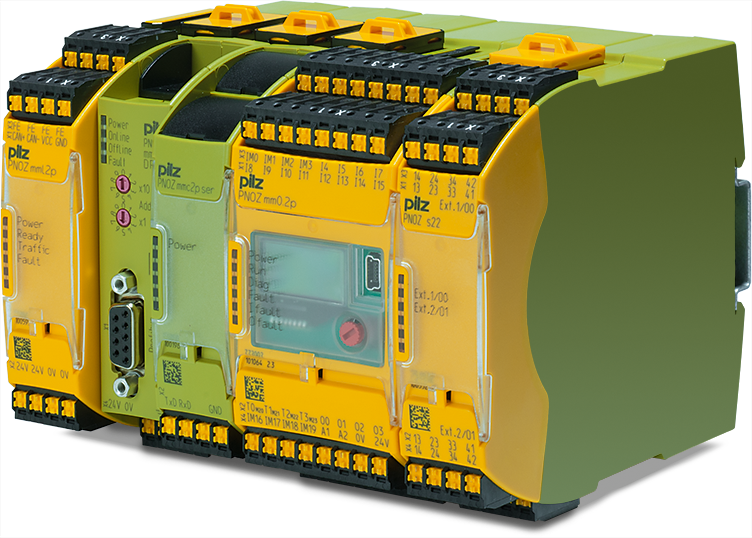

Configurable compact control systems PNOZmulti Mini – Base units

Base units for every safety application

You use the configurable small control systems PNOZmulti Mini mainly to implement more than three safety functions. Depending on the size of your machine, use the stand-alone or modular, expandable safety control system.

Expand the base units to the left with a maximum of 4 link modules, 1 communication module and 1 fieldbus module. To the right, you can dock on a maximum of 1 PNOZsigma relay expansion module. All base units for the configurable small control systems PNOZmulti Mini meet up to PL e (EN ISO 13849-1) and SIL CL 3 (IEC 62061), depending on application.

fittosize__188_188_4e43f855edd296f1a4bea2dbe3e947a1_f-pnoz-mo5p-f1_3c_2016_06_218x218-desktop-1583829273.jpg

Safety systems PNOZmulti – Expansion modules

Your application is the deciding factor: modular expansion of base units

If your plant expands, the PNOZmulti simply expands with it. Expansion modules are available to extend the modular system; these can be used in any combination to suit the requirement. The configurable safety systems always comprise a base unit and optional expansion modules.

A base unit has inputs, relay outputs, safe semiconductor outputs, outputs for automation applications, cascade input and cascade output. The number of inputs and outputs can be increased at any time by the expansion modules. Special expansion modules enable e.g. safe speed monitoring.

fittosize__188_188_a30debc77653f53d9c6ca24bdc96b884_f_pnoz_mc3p_773732_f1_3c_2016_08_218x218-desktop-1583831064.jpg

Safety system PNOZmulti – Communication and fieldbus modules

For connection to the fieldbus systems PROFINET & Co.

You can connect the configurable safety systems PNOZmulti to all common fieldbus and Ethernet systems: e.g. PROFINET, PROFIBUS-DP, ModbusTCP, EtherCAT, EtherNet IP, POWERLINK, CANopen, CC-Link, DeviceNet, Interbus, Sercos III. Configuration is performed simply in the software tool PNOZmulti Configurator.

Use a fieldbus module to set virtual inputs and outputs for automation functions. You can now read out diagnostic data. If you need to connect PNOZmulti to a different fieldbus system, this can be done without changing the configuration. What this means for you is that you can use PNOZmulti independently of industry, country or machine type!

f_computer_keyboard_screen_hands_ist7486039_3c_2016_04_218x218-desktop-1606126928.jpg

Software, small controllers PNOZmulti

PNOZmulti small controllers make design, configuration, documentation and commissioning simple. Easy diagnostic solutions reduce standstill times on your plant or machine. Our user-friendly software tools are available to do this: Use the software tool PNOZmulti Configurator to create safety-related user programs / safety programs. In conjunction with the hardware of the safe small controllers PNOZmulti it is possible to monitor safety functions in the field of machine protection. It’s both convenient and simple. For diagnostics you can use the OPC UA-based tools from the diagnostic solution PVIS.
Your automation projects can be managed using the web-based visualisation software PASvisu for simple configuration and optimum visualisation. That way you can achieve a convenient, comprehensive overview of your plant or machine locally and via remote access!
