FLEXEDGE

ANYTHING IN. ANYTHING OUT. AND THAT’S JUST THE BEGINNING.

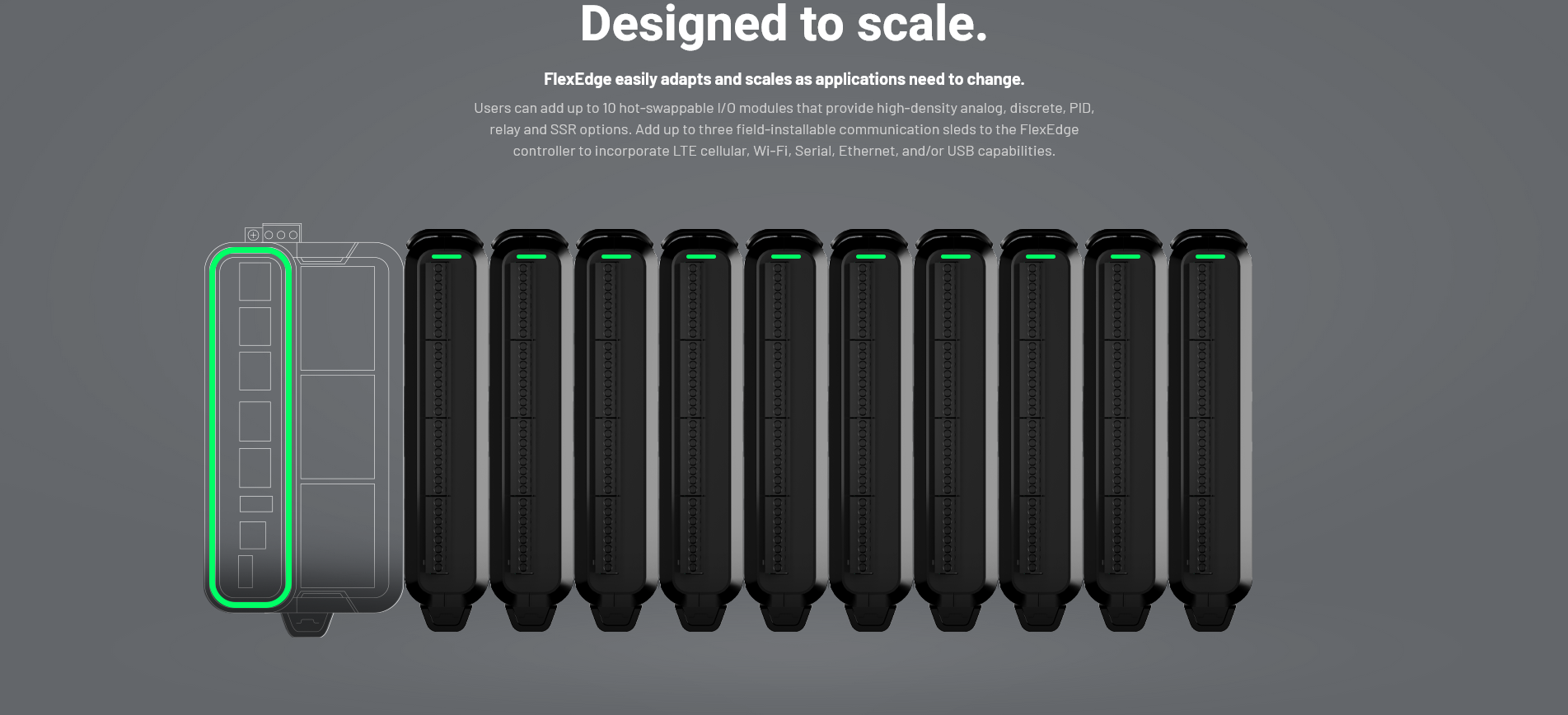

Flexedge from Redlion. Designed to scale.

FlexEdge easily adapts and scales as applications need to change.

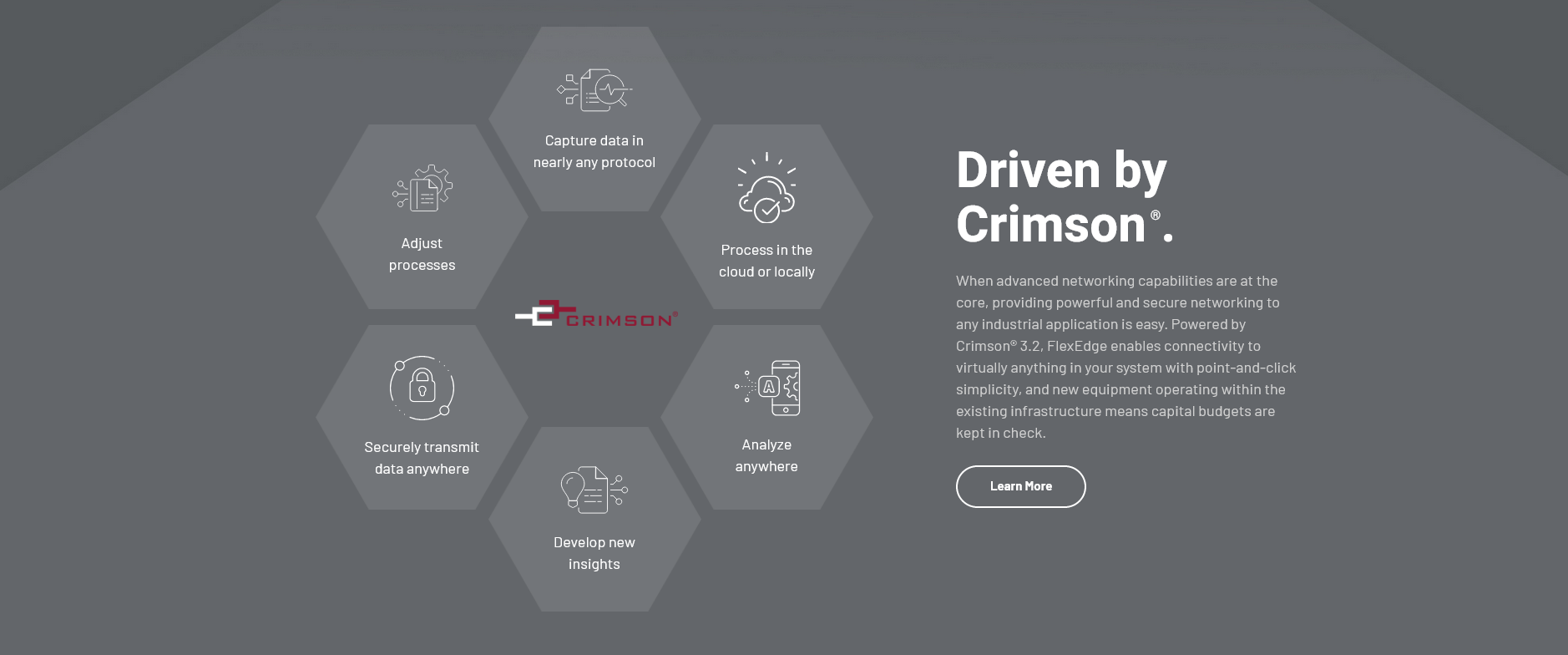

Capture data in nearly any protocol

Process in the cloud or locally

Analyze anywhere

Develop new insights

Securely transmit data anywhere

Adjust processes

Users can add up to 10 hot-swappable I/O modules that provide high-density analog, discrete, PID, relay and SSR options. Add up to three field-installable communication sleds to the FlexEdge controller to incorporate LTE cellular, Wi-Fi, Serial, Ethernet, and/or USB capabilities.

SPECIFICATIONS

Overview
Red Lion’s FlexEdge™ DA50N Secure Edge Networking Gateway offers reliable connectivity to deployed assets in both factory automation and remote applications. The DA50N features a wide operating temperature range and industrial certifications including UL Class 1, Div. II, and ATEX/IECEx approvals for reliable operations.

Security
The DA50N offers robust security features, including a stateful firewall, NAT translation, and
VPN connections. Designed with advanced networking capabilities such as port forwarding, dynamic DNS, and DHCP, this flexible system provides secure connectivity where you need it most.

Modular Communication
Future proof installations and avoid costly and complex rip-and-replace scenarios by leveraging the DA50N communication sled architecture, designed to enable organizations to leverage new communications technologies as they become available.

Connectivity

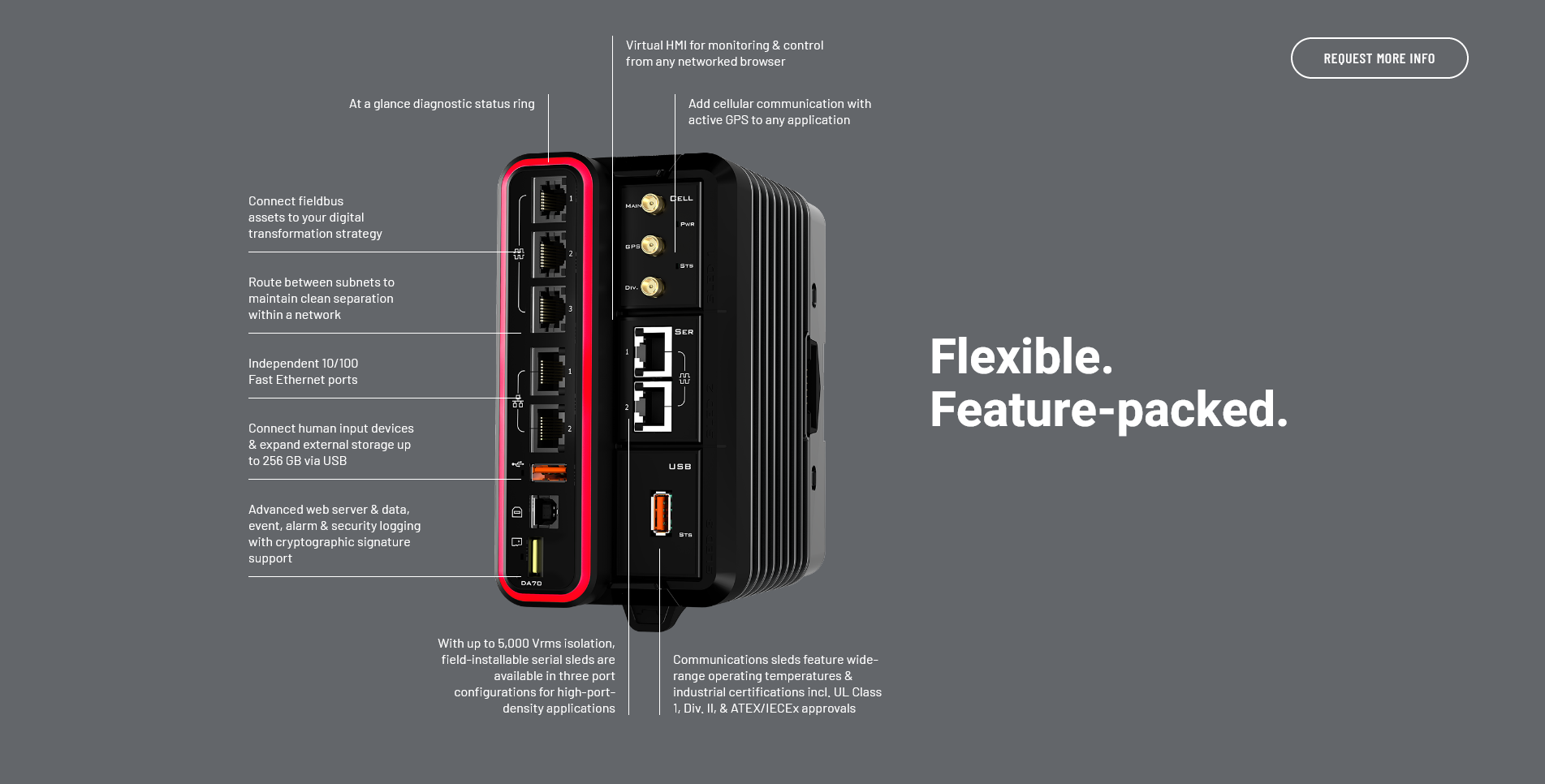

Dual 10/100 Fast Ethernet ports enable optional split LAN/WAN functionality, and serial ports featuring up to 5,000 Vrms isolation enable users to connect serial assets to their digital transformation strategy.

Device Management
The FlexEdge Secure Edge Networking Gateway can be managed locally through direct device connection or remotely via SixView Manager® software, our flexible remote management software package designed to help increase productivity and reduce costs for organizations. With a web-based console and customized dashboard, users are able to remotely access, configure and manage critical device information from a central location.

Specifications
Two 10/100Base-T(X) Ethernet ports
One (1) isolated RS-232 serial port
One (1) isolated RS-485 serial port
One (1) programmable analog or digital input
One (1) digital output
Onboard memory: 1 GB flash
Expansion memory: Up to 256 GB, micro SD
12-24 VDC +/- 15%

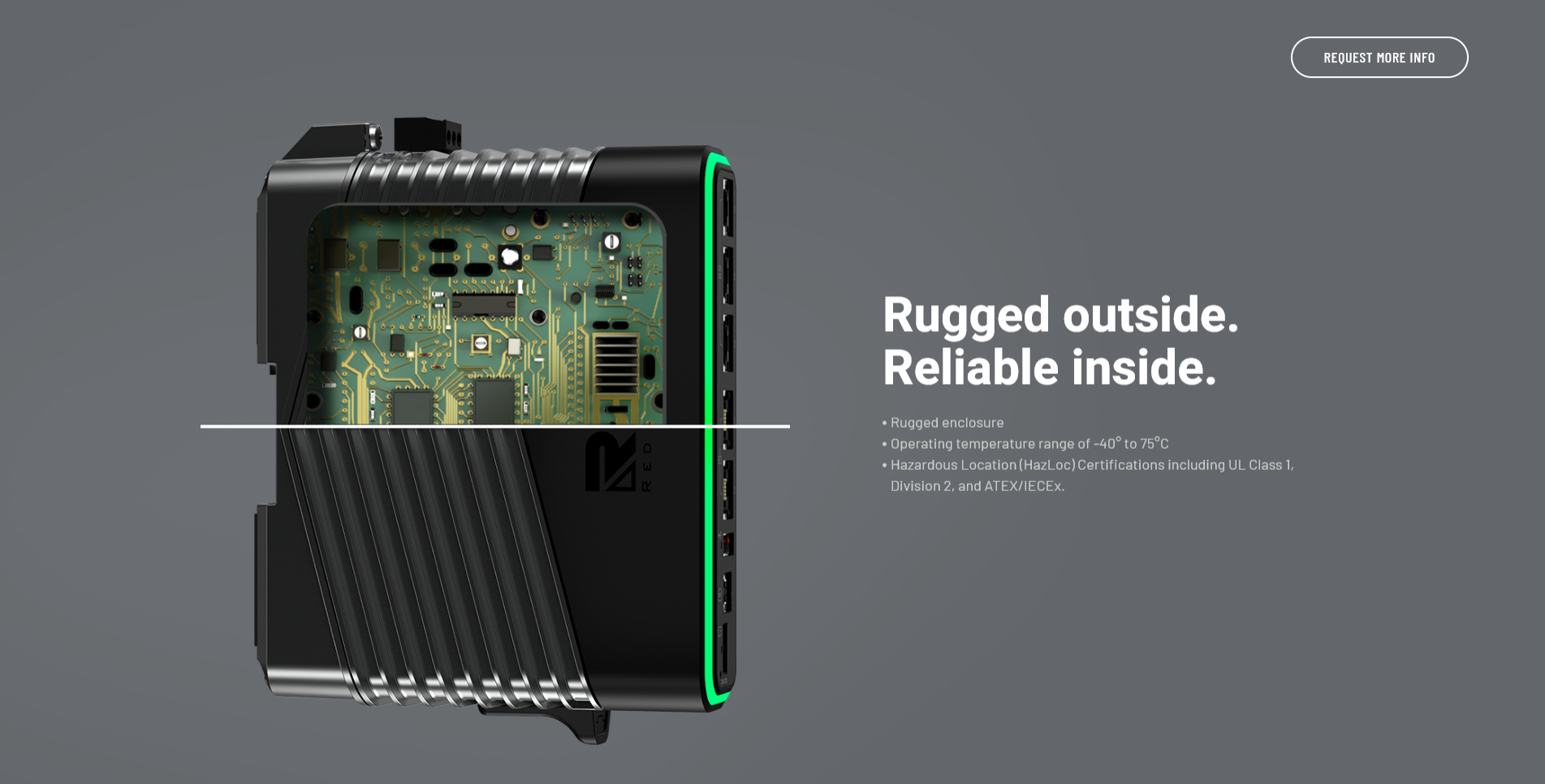

-40 to 75 C Operating Temperature
UL Class 1, Div 2 Certification
ATEX / IECEx Certification

Advanced Networking
LAN-to-LAN or LAN-to-WAN Connectivity
Integrated switching and routing
DHCP server/DHCP relay
Intrusion Protection Through Stateful Firewall
NAT Support For 1-to-1 and 1-to-Many Translations
25 VPN Connections for Secure Remote Access
Serial-to-IP communications
SNMP V1, V2, V3
IPSEC and SSL VPN Tunnels
Port Forwarding
Stateful Firewall
Access Control List (ACL)

Additional Features
Intuitive diagnostic light ring for at-a-glance system status indication

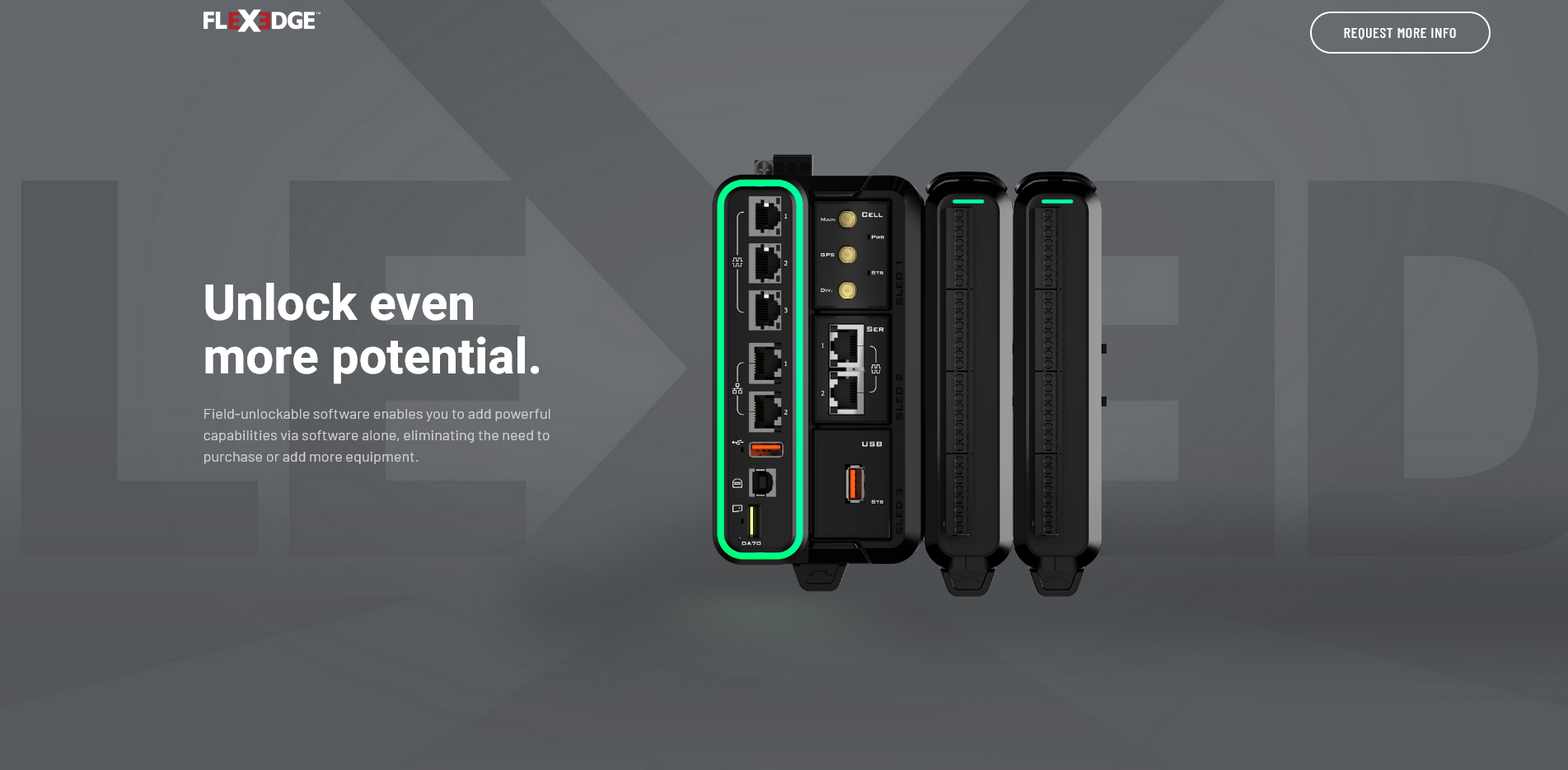

Future-proof modular design accommodates field-installable sleds
802.11 b/g/n Wi-Fi Client or Access Point (with Wi-Fi Communications Sled )
Dual SIM 4G LTE Communications with Active GPS (with Cellular Communications Sled )

Click here to design your ideal FlexEdge Intelligent Edge Automation solution!

ACCESSORIES

Click on the accessory types below to view accessories related to this product.

MODULES

DAS00CL9C4SAM000 - FlexEdge™ Cellular Sled, North America

DAS00CL9C4SEU000 - FlexEdge™ Cellular Sled, EU, SE Asia and Asia Pacific

DAS00CL9C4SVZ000 - FlexEdge™ Cellular Sled, North America (Verizon)

DAS00PN40U400000 - FlexEdge™ USB Host Port Sled

DAS00WF10N0AM000 - FlexEdge™ Wi-Fi Sled
