Proline Thermal mass flowmeters
Years of intensive research and application experience have enabled Endress+Hauser to evolve Proline to the state-of-the-art product line for the process industry. Since 1977, the reliability of Proline has been proven in over 2.6 million applications worldwide. The latest Proline generation provides industry-specific solutions packaged in a uniform device concept. Your combined benefits: time and cost savings and increased product quality, safety and plant availability.
Thermal meters: For direct mass measurement of industrial gases, compressed air and aqueous fluids
Whenever high turndown or low pressure losses are important in gas metering applications in any industry.
Thermal mass flowmeters offer a real alternative to traditional measuring techniques whether for process control, consumption and supply monitoring, detecting leaks or monitoring distribution networks.
Using insertion versions, it is also possible to measure gas flows in very large pipelines or in rectangular ducts.
The thermal measuring principle is widespread in industry and is being used successfully in many applications with gas flow, for example:
Compressed air (consumption, distribution)
Carbon dioxide (for beverage production and chilling)
Argon (in steel production)
Nitrogen and oxygen (production)
Natural gas (for burners and boiler feed control)
Air and biogas measurement (e.g. in wastewater plants)
Thermal flow measuring principle
This measuring principle is based on the fact that heat is drawn from a heated body when a fluid flows past.
A thermal flowmeter contains two PT100 temperature sensors for this purpose. One sensor measures the current fluid temperature as a reference. The second sensor is heated and has a constant temperature differential relative to the first sensor at “zero flow.”
As soon as the fluid begins to flow in the measuring tube, the heated temperature sensor cools off due to the fluid flowing past – the higher the flow velocity, the greater the cooling effect. The electric current required to maintain the temperature differential is thus a direct measure of mass flow.
Benefits
Multivariable – direct measurement and display of mass flow and fluid temperature
No pressure or temperature compensation required
High turndown (100:1)
Excellent low-end sensitivity
Quick reaction to fluctuations in flow
Ashdale are proud to represent Endress+Hauser in Northern Ireland.
Our technical team are OEM trained and certified so you can trust us to provide the very best support for sales & service.
If you have an application, please get touch we love solving problems !
Proline t-mass A 150 Thermal mass flowmeter
The flowmeter for cost-effective measurement and easy monitoring of utility gases.
Predecessor: t-trend ATT12A
Proline t-mass B 150 Thermal mass flowmeter
The flowmeter for cost-effective measurement and easy monitoring of utility gases.
Predecessor: t-trend ATT12 t-trend ATT12A
Proline t-mass F 300 Thermal mass flowmeter
Inline flowmeter with long-term stability and a compact, easily accessible transmitter.
Proline t-mass F 500 Thermal mass flowmeter
Inline flowmeter with long-term stability as remote version with up to 4 I/Os.

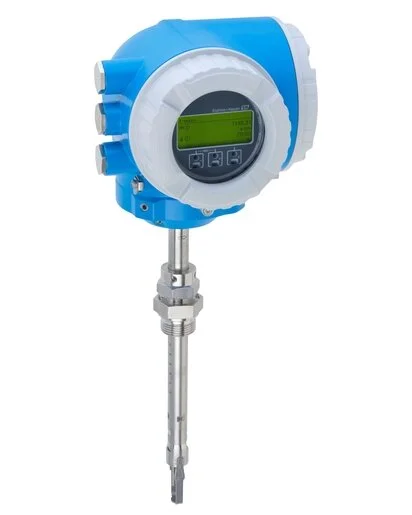

Proline t-mass I 300 Thermal mass flowmeter
Insertion flowmeter with long-term stability and a compact, easily accessible transmitter.

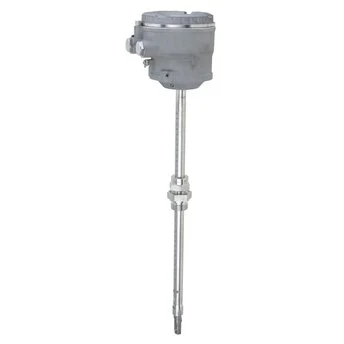

Proline t-mass I 500 Thermal mass flowmeter
Insertion flowmeter with long-term stability as remote version with up to 4 I/Os
Proline t-mass T 150 Thermal mass flowmeter
The flowmeter for reliable and easy monitoring of liquids.
Predecessor: t-trend ATT12
Proline t-mass 65In Thermal mass flowmeter
Robust flowmeter with adaptation to changing process conditions.

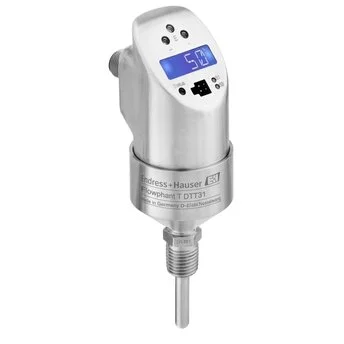

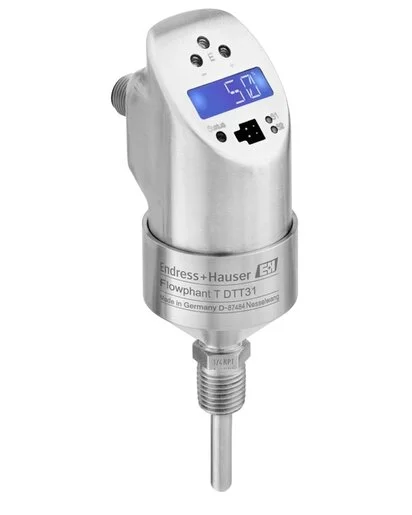

Flowphant T DTT31 Flow switch
Safe monitoring of flow rates and temperature in industrial processes. Compact and cost-saving.
Flowphant T DTT35 Flow switch
Safe monitoring of flow rates and temperature in hygienic processes. Compact and cost-saving.
