Radar level measurement using Micropilot
Continuous level measurement in liquids and solids with free space radar sensors
Radar level measurement with top-down installation of a Micropilot sensor offers perfect application fit in all industries. Non-contact radar with simple commissioning, trouble-free operation saves time and money.
For usage in a wide range of applications - be it in simple storage tanks, in corrosive or aggressive media or high accuracy tank gauging applications.
Check out the broad range of Micropilot devices for radar applications and click on the button below.
Radar level measurement is a safe solution even under extreme process conditions (pressure, temperature) and vapors. Micropilot can also be used in hygienic applications for non-contact level measurement. Micropilot versions are available for different industries like for water/wastewater, the food industry, life sciences or the process industry. Various antenna versions for every kind of radar applications are available.
Radar measurement: Measuring Principle
Micropilot works with high-frequency radar pulses which are emitted by an antenna and reflected from the medium surface due to a change of the dc value (relative dielectric constant). The Time-of-Flight of the reflected radar pulse is directly proportional to the distance traveled. If the tank geometry is known, the level can be calculated from this variable.
Benefits
Non-contact, maintenance-free measurement
Unaffected by medium properties like density and conductivity, in bulk solids also unaffected by filling noise and dust
Freely adjustable measuring range
For high temperatures up to +450°C/+842°F
Ashdale are proud to represent Endress+ Hauser in Northern Ireland.
Our technical team are OEM trained and certified so you can trust us to provide the very best support for sales & service.
If you have an application, please get touch we love solving problems !
Radar measurement Time-of-Flight Micropilot FMR20
Level measurement in liquids for water & wastewater and utilities in all industries
Radar measurement Micropilot FMR60
The standard sensor for highest demands in liquid level measurement with 80GHz technology
Radar measurement Time-of-Flight Micropilot FMR54
For level measurement in liquids where strong steam or ammonia can occur.
Predecessor - Micropilot M FMR230
Radar measurement Time-of-Flight Micropilot FMR50
Basic model for level liquid applications.
Predecessor - Micropilot M FMR244

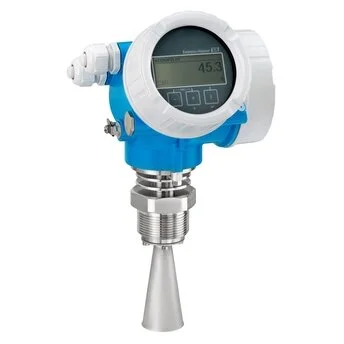

Radar measurement Time-of-Flight Micropilot FMR51
The standard sensor for highest demands in liquid level measurement.
Predecessor - Micropilot M FMR240
Radar measurement Time-of-Flight Micropilot FMR52
For level measurement in aggressive liquids or applications with hygiene requirements.
Predecessor - Micropilot M FMR245
Radar measurement Time-of-Flight Micropilot FMR53
For simple level measurement applications in liquids.
Predecessor
Radar measurement Micropilot FMR532
For high accurate non-contact level measurement in stilling well applications in custody transfer
Radar measurement Micropilot FMR540
Horn antenna and parabolic antenna for custody transfer applications.
Predecessor

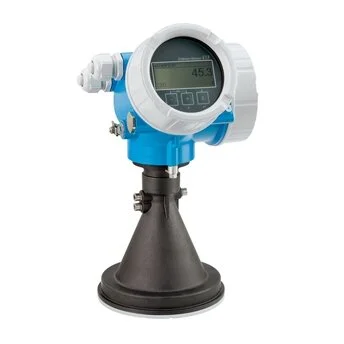

Radar measurement Time-of-Flight Micropilot FMR56
Economically efficient basis model for level measurement in solids.
Predecessor
Radar measurement Time-of-Flight Micropilot FMR57
The standard sensor for highest demands in bulk solids level measurement
Predecessor
Radar measurement Micropilot FMR62
For 80GHz level measurement in aggressive liquids or applications with hygiene requirements
Radar measurement Micropilot FMR67
The standard sensor for highest demands in bulk solids level measurement with 80GHz technology.
Radar measurement Micropilot NMR81
Drip-off lens antenna with 80 GHz transmitting frequency for custody transfer applications
Radar measurement Micropilot NMR84
For high accurate non-contact level measurement in stilling well applications in custody transfer
Radar measurement Time-of-Flight Micropilot FMR54
For level measurement in liquids where strong steam or ammonia can occur.
Predecessor
Micropilot FWR30 - The cloud connected radar level sensor
From smart level monitoring to supply chain management.
