Memograph M RSG45

£0.00

Advanced Data Manger

Quantity:

Add To Cart

Advanced Data Manger

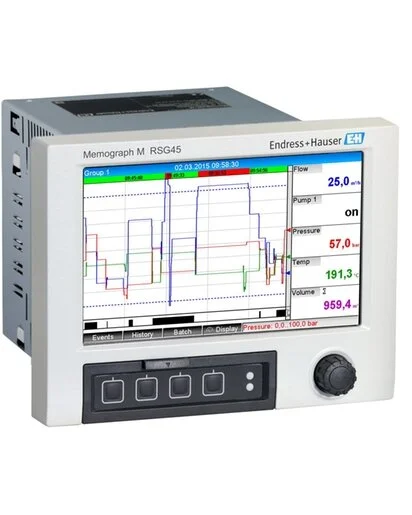

Advanced Data Manager Memograph M, RSG45

Saves, visualizes, analyzes and communicates

The Advanced Data Manager is a flexible and powerful system for organizing process values. Thanks to its intuitive operation, Memograph M adapts quickly and easily to any application.

The process values are clearly presented on the display and logged safely, limits are monitored and analyzed. Via communication protocols, the measured and calculated values can be easily transferred to higher-level systems and plant modules can be interconnected.

Also available as DIN rail version without display.

Benefits

High degree of data security: tamper-proof data storage and personalized access authorization with electronic signature (FDA 21 CFR 11)
HART input card: HART sensors directly connected provide accurate process values for calculation and logging
HART...
Show more

Field of application

The solution for all your tasks. For example, for:

Process measuring technology
Power stations and energy supply
Steam boiler monitoring/efficiency calculation
Food and pharmaceutical industry
Plant and apparatus engineering and construction; Milk...
Show more

Input

20 analog (max) (U, I, TC, RTD, frequency, pulse)

20 HART (max) (HART, 4…20mA)

14 digital (max) (control, event and counting inputs)

Output

12 relays (max)

2 analog (max) (I, pulse)

1 transmitter power supply

Features and specifications

Measuring principle - Data manager
Measuring principle - Energymanager
Function
Secure data recording and signal analysis

visualization

integrated web server for device set-up

HART(R) transparency, RSG45 as a HART modem
E-Mail notification (encrypted mails)

100 ms scan rate, high speed storage cycle 100 ms

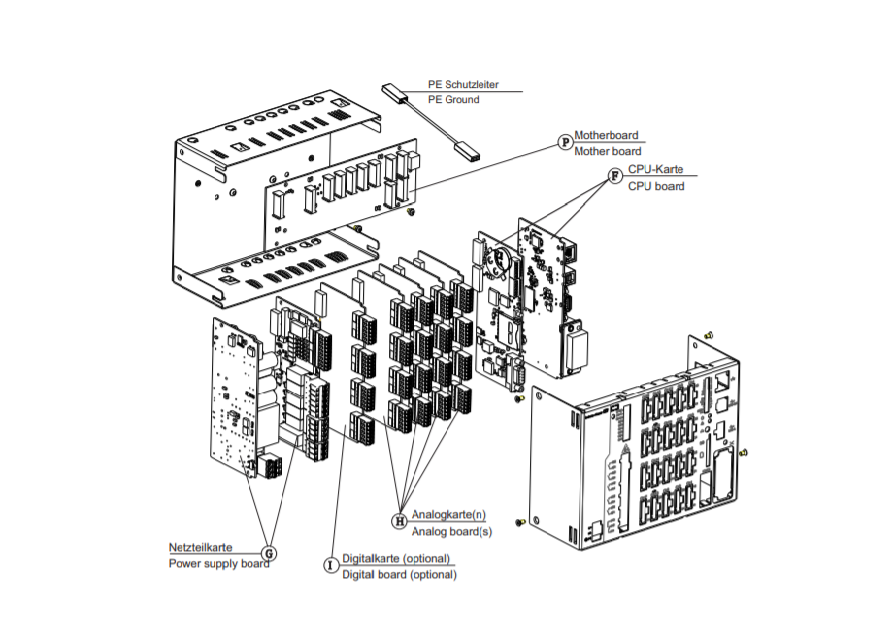

modular design for simple expansion
data readout and processing via Field Data Manager Software

OPC server for indication of instantaneous values (optional)
