Micro working robot
Mitsubishi Robots
Mitsubishi Robots
Mitsubishi Robots
High-performance system developed especially for micro-handling – unbeatable in precision, speed and compactness. The compact robot units with 4 degrees of freedom are ideal for micro assembling like watches, mobile phones or hearing aids. The RP series robots include three models for handling tasks with payloads from 1 to 5 kg.
The RP-series of Mitsubishi Electric convinces due to its innovative concept, which is required for highly accurate and extremely fast applications. The robots have a unique double-arm structure which significantly increases production and improves quality within micro-handling. Together with the ultra-compact SD-controller, the RP-robot can be manually installed in any application, no matter how small. Like all MELFA-robots, the RP-series is already fitted at the factory with all features such as Ethernet, USB, tracking connection and the additional axle control for up to 8 additional axles.
Highlights
Highest precision: repetition accuracy of ± 0.005 mmCompact and lightweight: 12 kg light and a footprint smaller than DIN A4 (FP-1ADH)Weight: 1 kg to 5 kg handling weight for many different applications.Protection: Clean-room model (ISO-level III) availableConnectors: Pneumatic grippers, Ethernet, USB, camera interface and two encoder connections as well as up to 8 additional external axles as standard, optional I/O and field bus expansion cards. Direct Connection via Ethernet to GOT HMI and teaching box.Double arm SCARA robot: unrivalled in the market - unique in the TechnologyTeaching box : Full Graphic R56TB with touch screen or R32TB

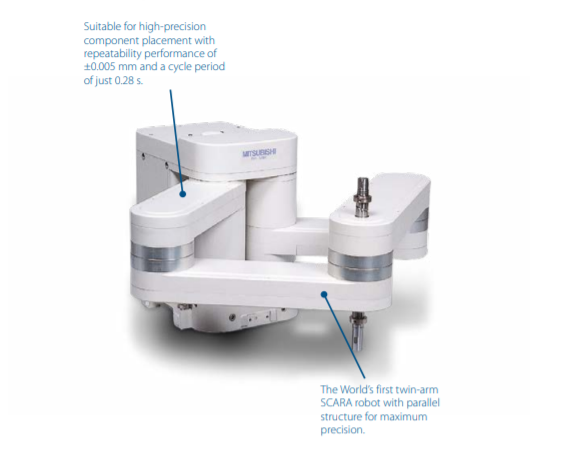

Small, high speed, high precision robot with unique 5 links structure
Ashdale
We are a certified centre of excellence for Mitsubishi Electric Factory Automation products.
Our technical team are OEM trained and certified so you can trust us to provide the very best support for sales & service.
If you have an application, please get touch we love solving problems !

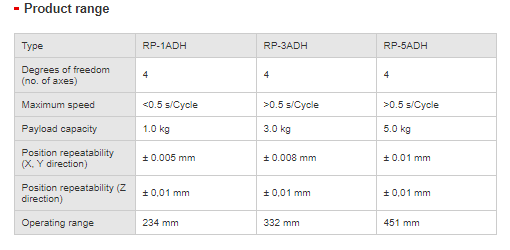

RP-ADH Series
The twin-arm SCARA robots of the RP series are high-performance systems developed specially for micro-handling for with payloads from 1 to 5kg.
