Ceiling mounted, horizontal type robot
Mitsubishi Robots
Mitsubishi Robots
Mitsubishi Robots
High speed, high precision, space saving inverse mounting robots. Capable of wide range applications electric and electronic parts, precision assembly of small parts inspections, high speed transfer and packing
Maximum Speed and Precision

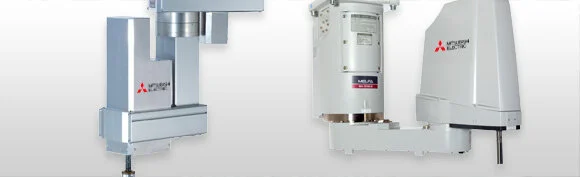

With its special compact design and support for overhead installation above the application, the robots RH‑1F(R)HR and RH‑3F(R)HR do not take up any valuable space in the work area next to the installation location, enabling even smaller work cell dimensions. For high-speed handling of small parts up to 1kg, the RH‑1F(R)HR is the perfect robot. It allows up to 150picks/min. with conveyer tracking including hand open/close. The RH‑3F(R)HR robot’s perfectly circular cylindrical work space is 150 mm high with a diameter of 700 mm. It can access any point in this space while manipulating a payload up to 3kg.
Highlights RH-1F(R)HR
Highest productivity: Up to 150 picks/min. with conveyor tracking including hand open/closeFlexible installation: Cell, wall and floor mounting for easy integration into any working cellIncreased operation area: Peripheral equipment can be set up below the robotWide range of applications: IP protection from IP20 to IP65 / ISO Class 5 can be increased by adding a bellowClosed arm housing: Internal vacuum valve and internally routed cables present any snagging with peripheral equipment.
Highlights RH-3F(R)HR
Space saving: Overhead installation for minimum spare requirementCompact and cost effective: Compact design by only 24kg weight for simple mounting systemIncrease your productivity: Cycle times of up to 0.32 seconds with accuracy of up to 0.01 mmFlexible workspace: 700 mm circular diameter, 150 mm spindle extension movementProtection for harsh environments: IP20, optional IP65 and Clean-room model (ISO-Level III) is available
The RH-FRHR series offers 3 additional features: "Next-generation intelligent functions", "Safe, collaborative work applications", and "FA-IT integration functions".
Maximum Speed and Precision
Ashdale
We are a certified centre of excellence for Mitsubishi Electric Factory Automation products.
Our technical team are OEM trained and certified so you can trust us to provide the very best support for sales & service.
If you have an application, please get touch we love solving problems !
RH-FRHR series
With their special compact design and support for overhead installation above the application, the robots RH‑1FRHR and RH‑3FRHR enable small work space.

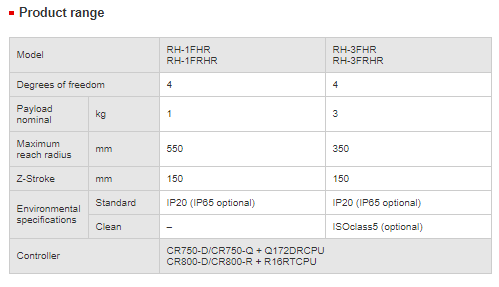

"Next-generation intelligent functions", "Safe, collaborative work applications", and "FA-IT integration functions". With these 3 key features, the FR Series is capable of handling virtually all your automation needs.Product Specification
RH-FHR Series
The RH-FHR-D series, use the next generation controller that incorporates many intelligent features and significantly improves the performance of the robots.
