Induction Loop Systems

£0.00

Induction Loop Systems

Quantity:
Add To Cart

Induction Loop Systems

Induction Loop Systems



Hear Hear!

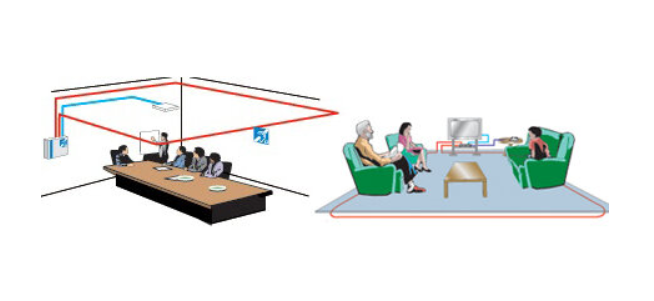

C-TEC's best-selling PDA range of hearing loop equipment includes the UK's widest range of induction loop amplifiers, microphones, connector plates and test equipment. Designed to allow hearing aid users to participate more fully in general conversation and other activities, the range includes a variety of cost-effective kits for use in ticket offices, churches, meeting rooms, lecture theatres, GP surgeries and more – all exceeding the requirements of current British Standards when correctly installed. The PDA range is the widest range of audio frequency induction loop equipment in the UK, allowing those that are hard of hearing to hear more clearly. By switching a hearing aid to the "T" position the hearing aid will tune into the standard frequency of an the induction loop system within a building and deliver an amplified, clear sound to the wearer. The induction loop system can be configured to amplify via ambient and directional mic signals & line inputs such as TV`s or alarm signals depending on the application.




The Equality Act 2010 requires that public buildings, the workplace and construction of new dwellings take the needs of all users into accoiunt. Installation of an induction loop system can help satisfy the relevant element of the legislation not to mention improving the lives of those who suffer from hard of hearing.

Designed to meet or exceed the requirements of BS5794 and EN60118-4 when correctly installed, all amplifiers in the PDA range offer excellent intelligibility, true current mode amplification, phantom power (for electret microphones) and full compatibility with our 'outreach plate' audio input extension system (except the PL1, VL1 and DL50). Many are also available in kit format for ease of specification, purchase and installation.

We offer the full range of systems from portable loop systems to large 200sq metre systems for cathedrals and auditoriums and infra red based systems.


Wall mounted induction loop amplifier for businesses or community settings.

Wall mounted induction loop amplifier for businesses or community settings.



Ashdale are proud to represent C-TEC in Northern Ireland.

If you have an application, please get touch we love solving problems !




PDA RANGE OUTREACH PLATE AUDIO INPUT EXTENSION SYSTEM

Can be used to increase the number of audio Inputs on a compatible hearing loop system (ML1, PDA103, PDA200E and PDA-PRO)

A separate 12V PSU may be required when connecting plates to other amplifiers. Wire plates with Belden 8723 audio cable.

PDA RANGE MICROPHONES

CONNECTION LEADS

HEARING LOOP CABLE

1.2m2 PORTABLE HEARING LOOP KITS

1.2m2 FIXED COUNTER HEARING LOOP KITS

50m2 HEARING LOOP KITS

SPECIALIST HEARING LOOP KITS

200m2 HEARING LOOP AMPLIFIERS & KITS

PDA200, 500 & 1000 HEARING LOOP AMPLIFIERS

PDA/S (200m2 to 1000m2) HEARING LOOP AMPLIFIERS -

DLR PHASE SHIFTING DUAL HEARING LOOP AMPLIFIER KITS

PDA/D PHASE SHIFTING DUAL HEARING LOOP AMPLIFIER KITS




Software

Software

Catalogue

Catalogue

Data Sheet

Data Sheet
